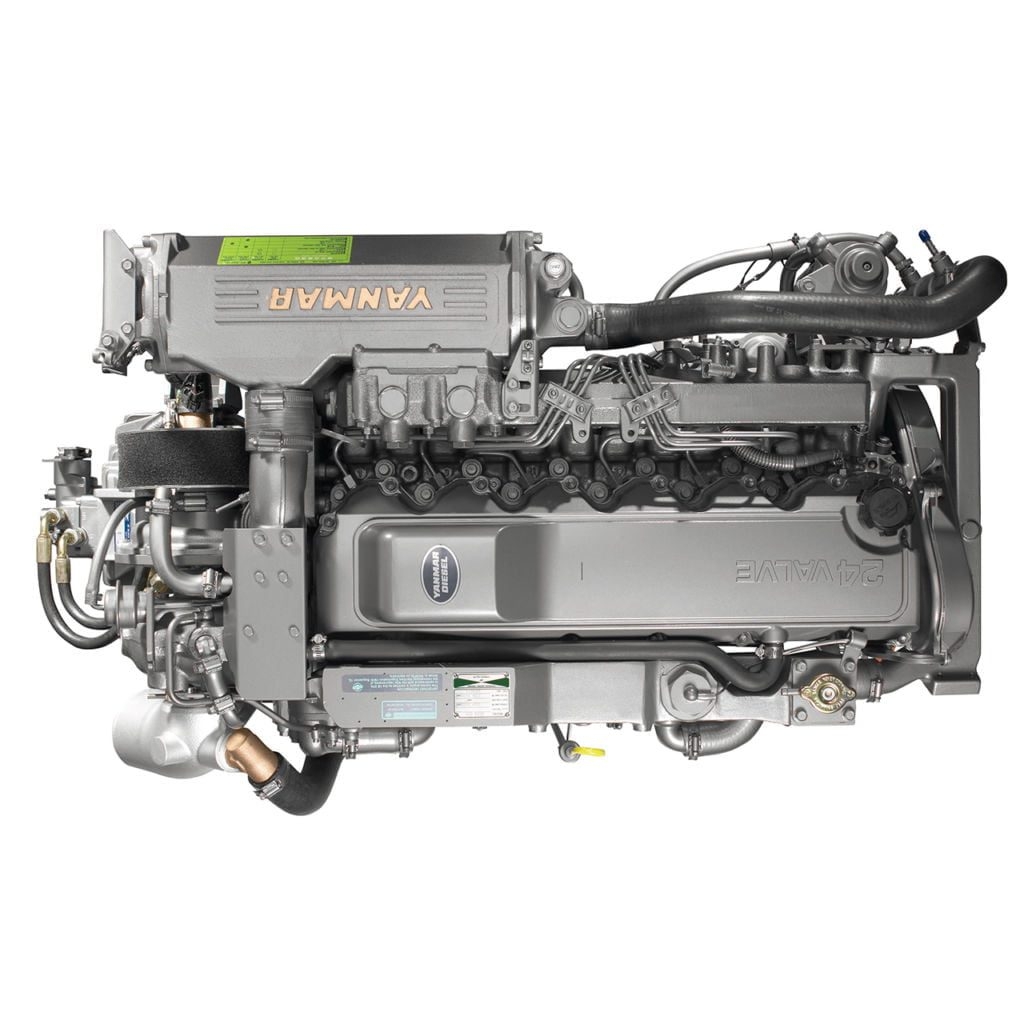

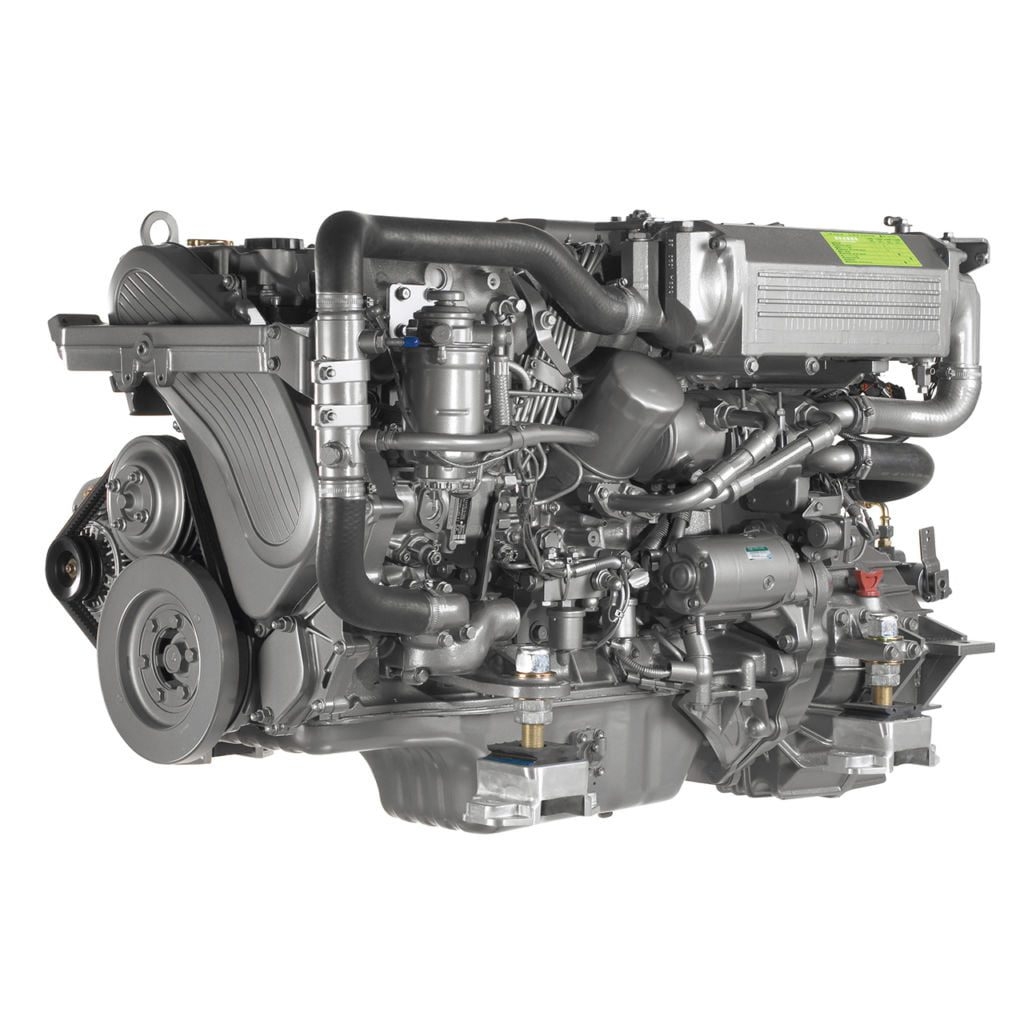

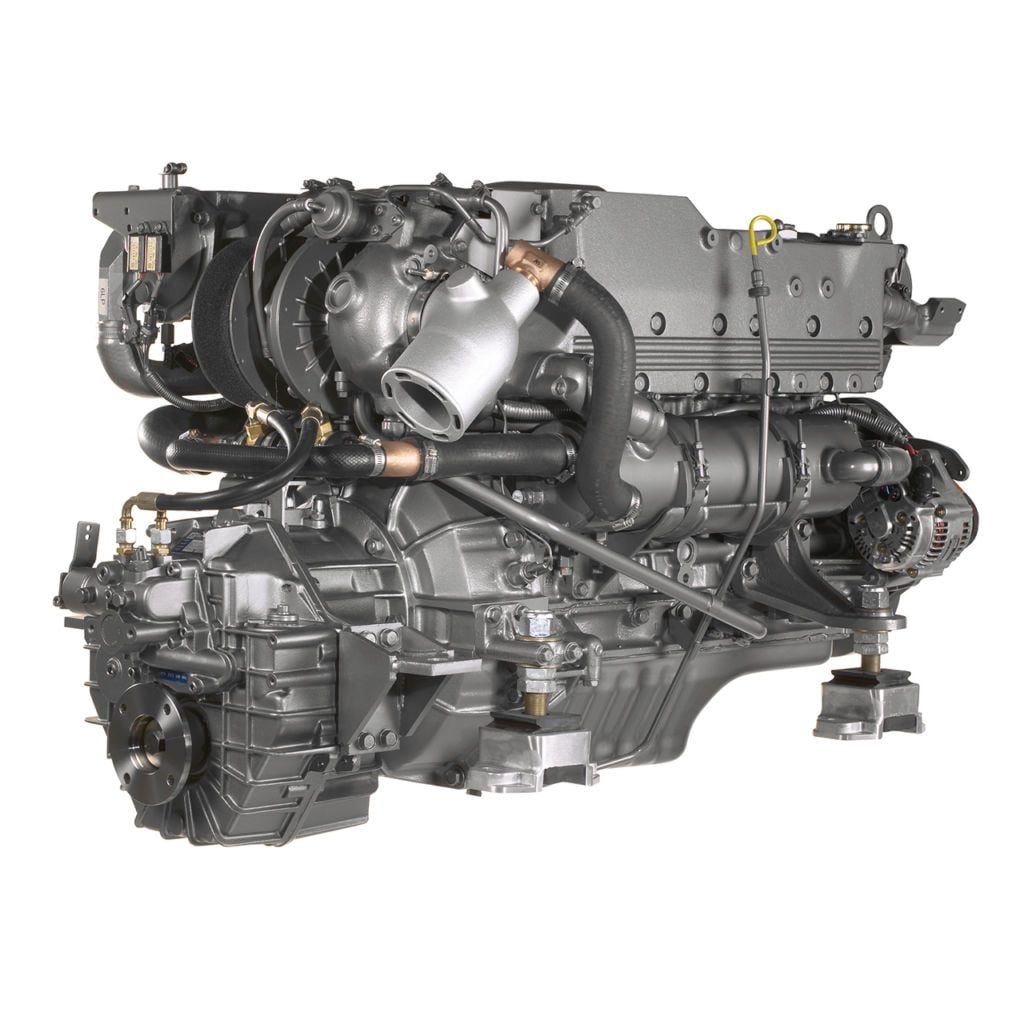

Yanmar 6LPA-STP2 (Z) / 6LPA-STC (Z)
Yanmar 6LPA-STP2 (Z) / 6LPA-STC (Z)
Yanmar 6LPA-STP2 (Z) / 6LPA-STC (Z)

Yanmar 6LPA-STP2 (Z) / 6LPA-STC (Z)

Contact Us
Manufacturer: Yanmar

Specifications

Rated output232 kW / 315 mhp
Rated Speed3800 rpm
Displacement4.164 L / 254 cu. in
No. of cylinders6 cylinders
Cylinder Bore x Stroke94 mm x 100 mm / 3.7 in x 3.94 in
Combustion systemDirect Injection, 2-stage Injection
AspirationTurbocharged & Intercooled
Alternator12V - 80A
Dry weight without gear408 kg / 899 lbs
Dimensions1220 mm x 666 mm x 739 mm
ControlsMechanical
CertificationsRCD 1 IMO Tier 2 EPA Tier 2 BSO II EMC SOLAS

  • Specifications

Performance Curves

6LPA-STP2 power performance curves
6LPA-STP2 power performance curves
6LPA-STP2 torque performance curves
6LPA-STP2 torque performance curves
6LPA-STP2 fuel performance curves
6LPA-STP2 fuel performance curves

Technical Drawings

6LPA-STP2 with KMH50A
6LPA-STP2 with KMH50A
6LPA-STP2 with KMH50A
6LPA-STP2 with KMH50A
6LPA-STZP2 with ZT370
6LPA-STZP2 with ZT370
6LPA-STZP2 with ZT370
6LPA-STZP2 with ZT370

Packages

Standard Engine Package

  • Exhaust mixing elbow [L-type]
  • Alternator 12V – 80A
  • Water separator

Optional Accessories

  • High-riser mixing elbow [instead of L-elbow]
  • Flexible mounts
  • B/C/D-type instrument panel
  • Extension wire harness [4m, 6m, 10m]
  • Dual harness [for 2nd station]
  • Sensor for VDO instrument panels
  • SOLAS including Certificate [factory fit only]
  • Air venting device for cooling water tank
  • Lub oil evacuation pump
