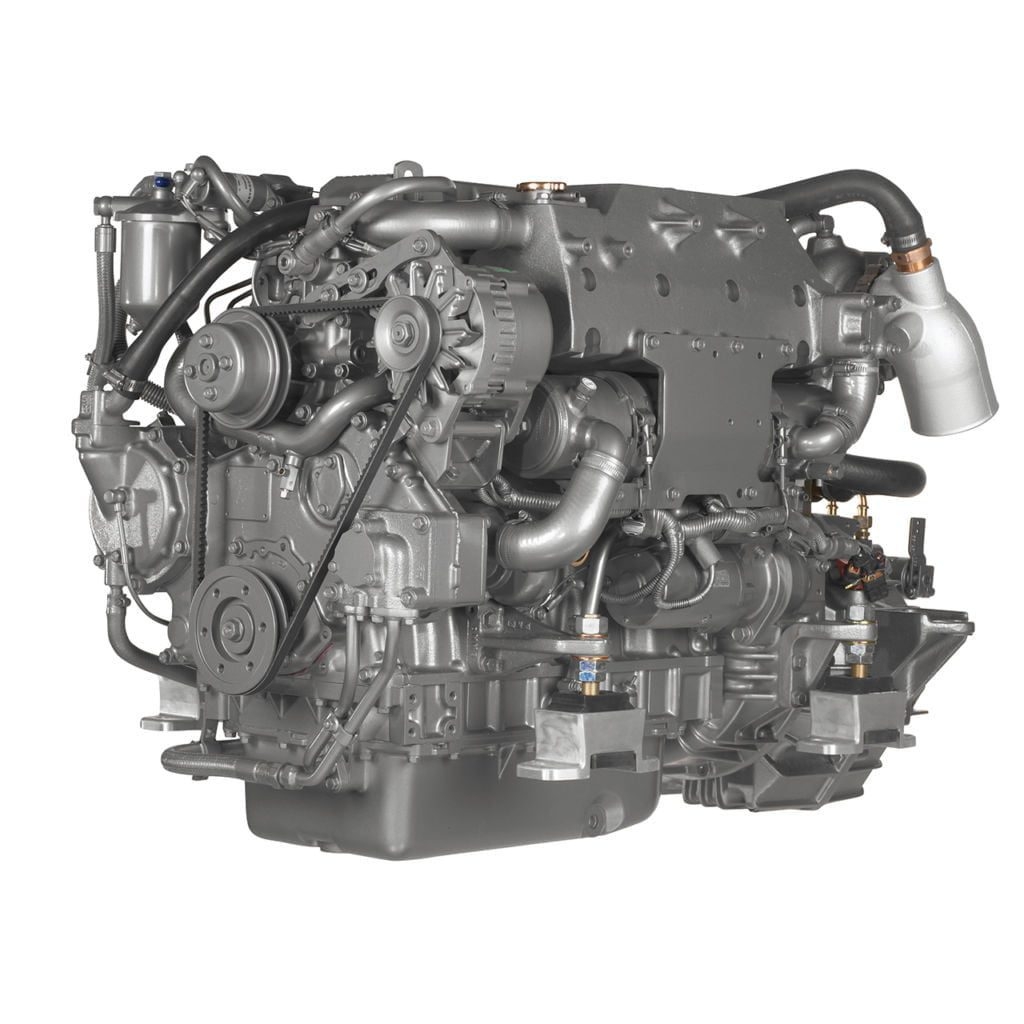

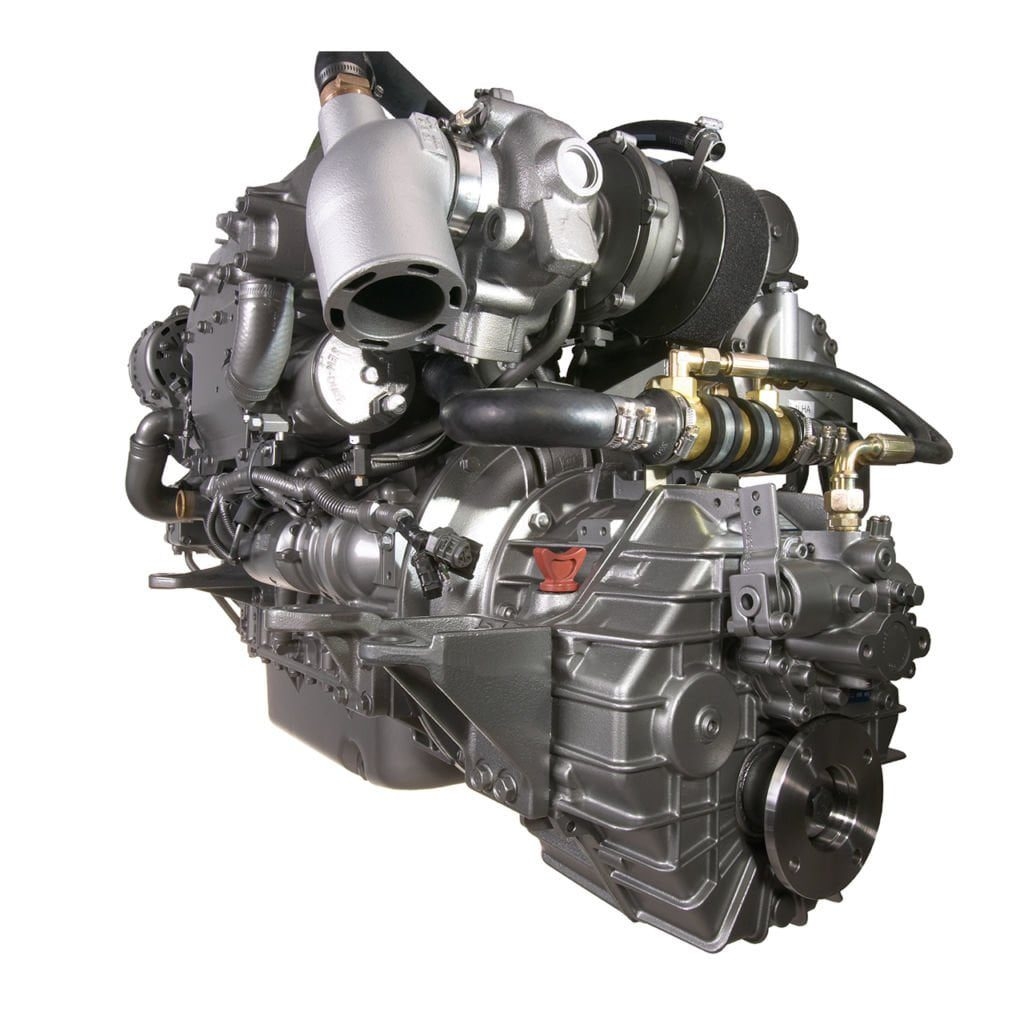

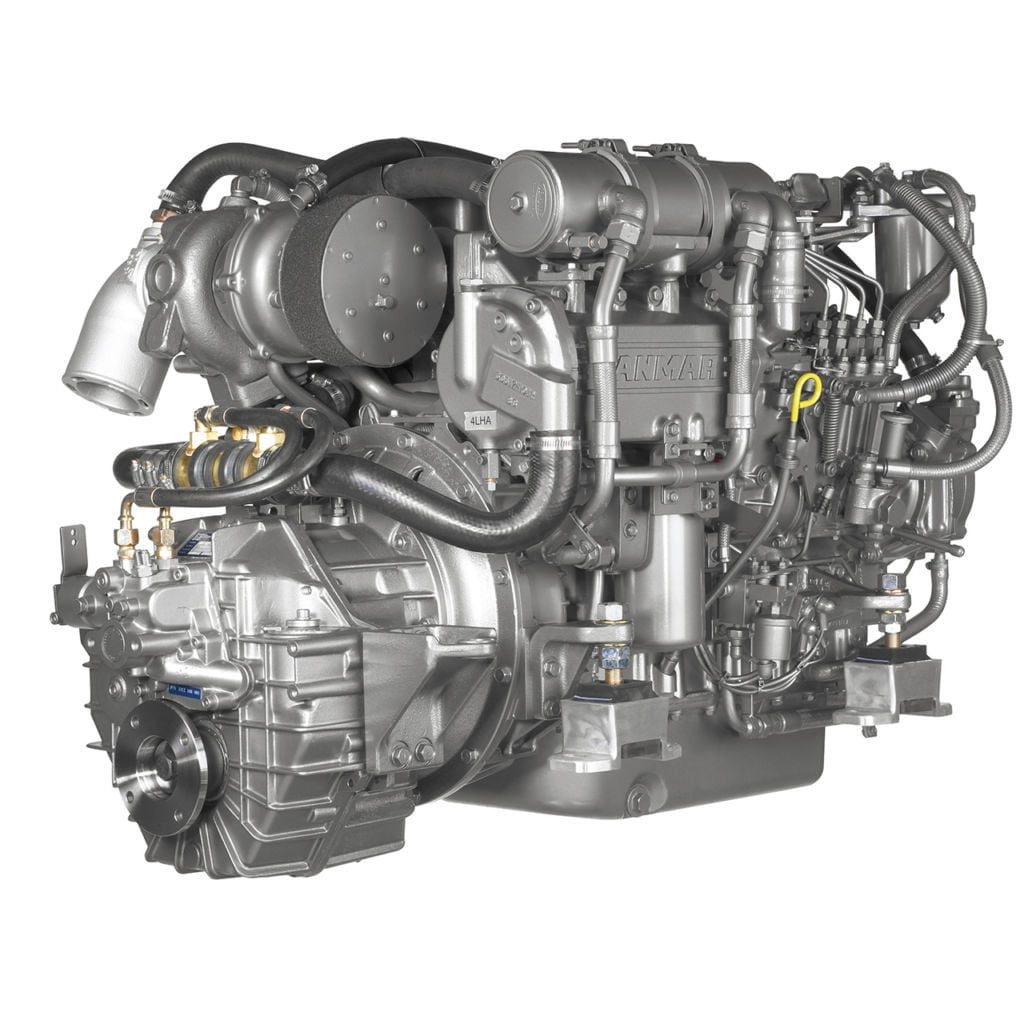

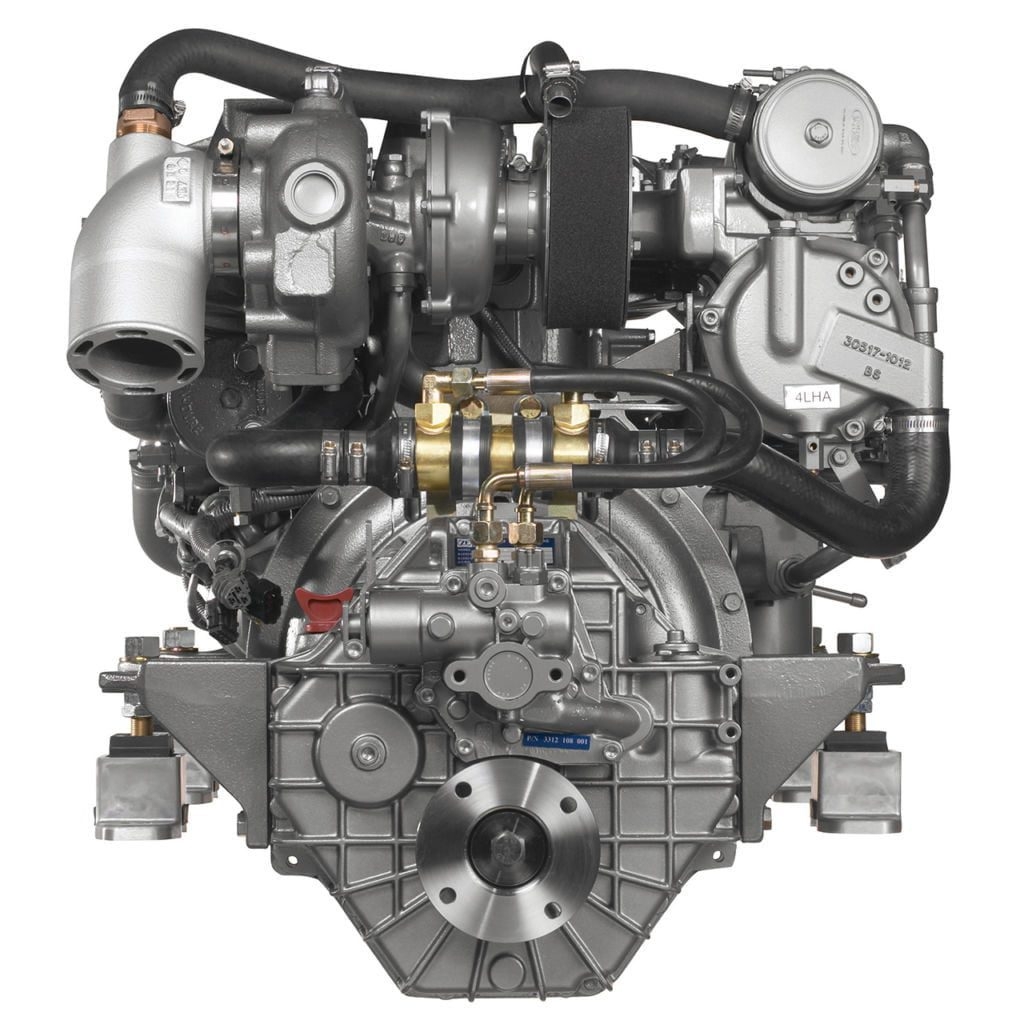

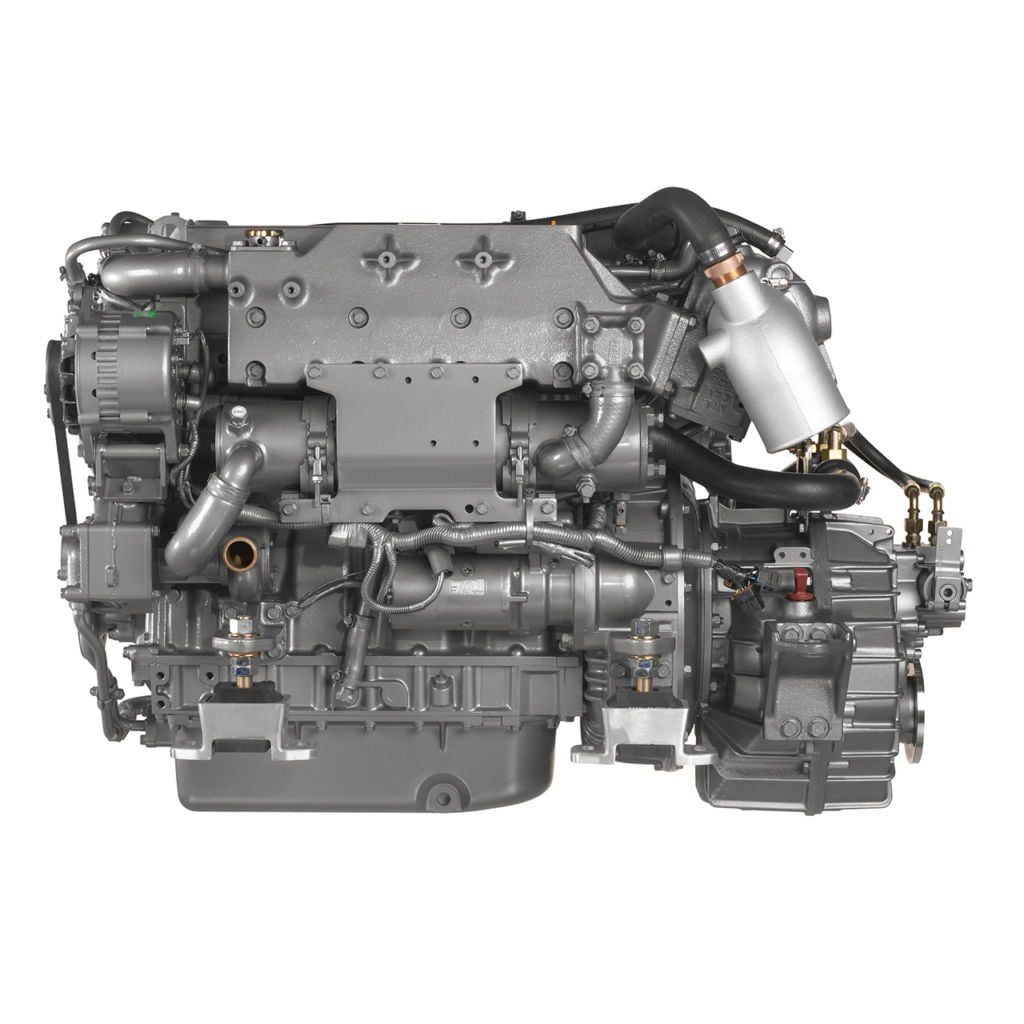

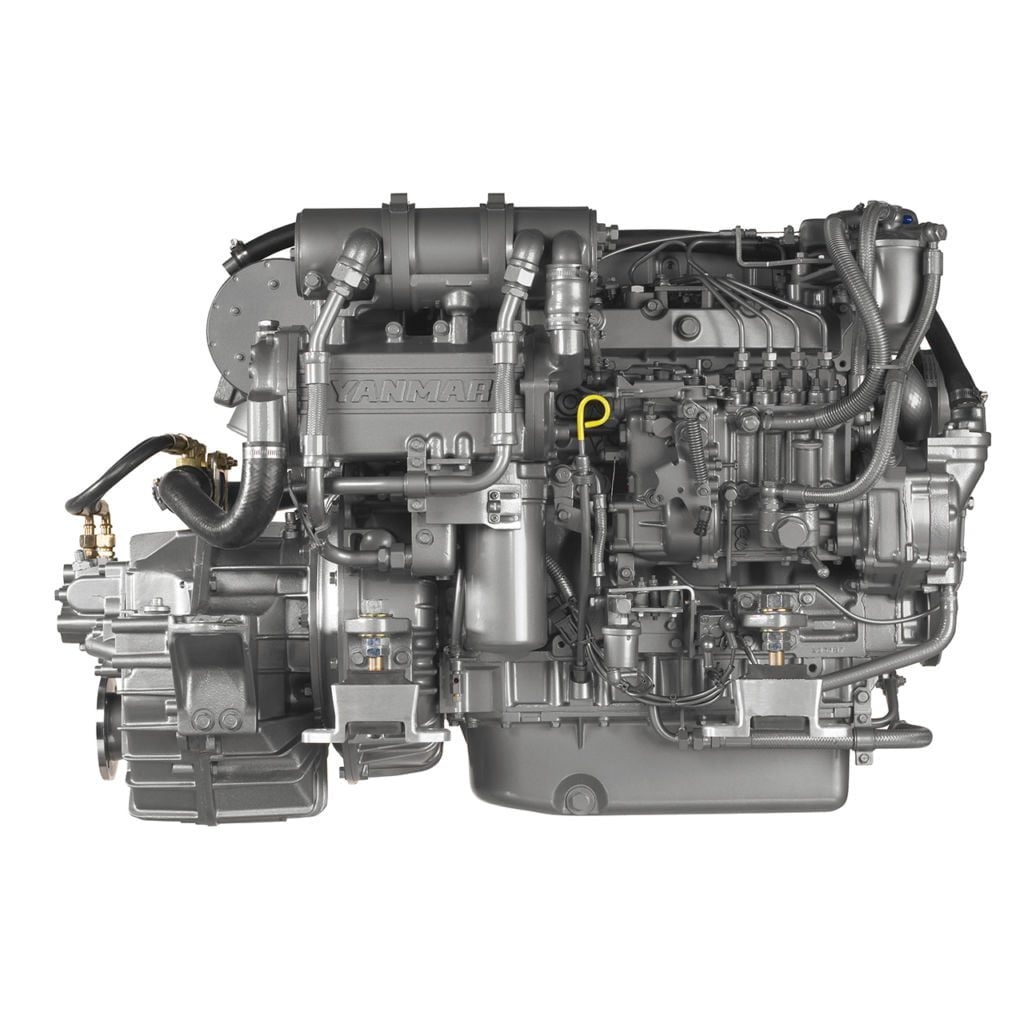

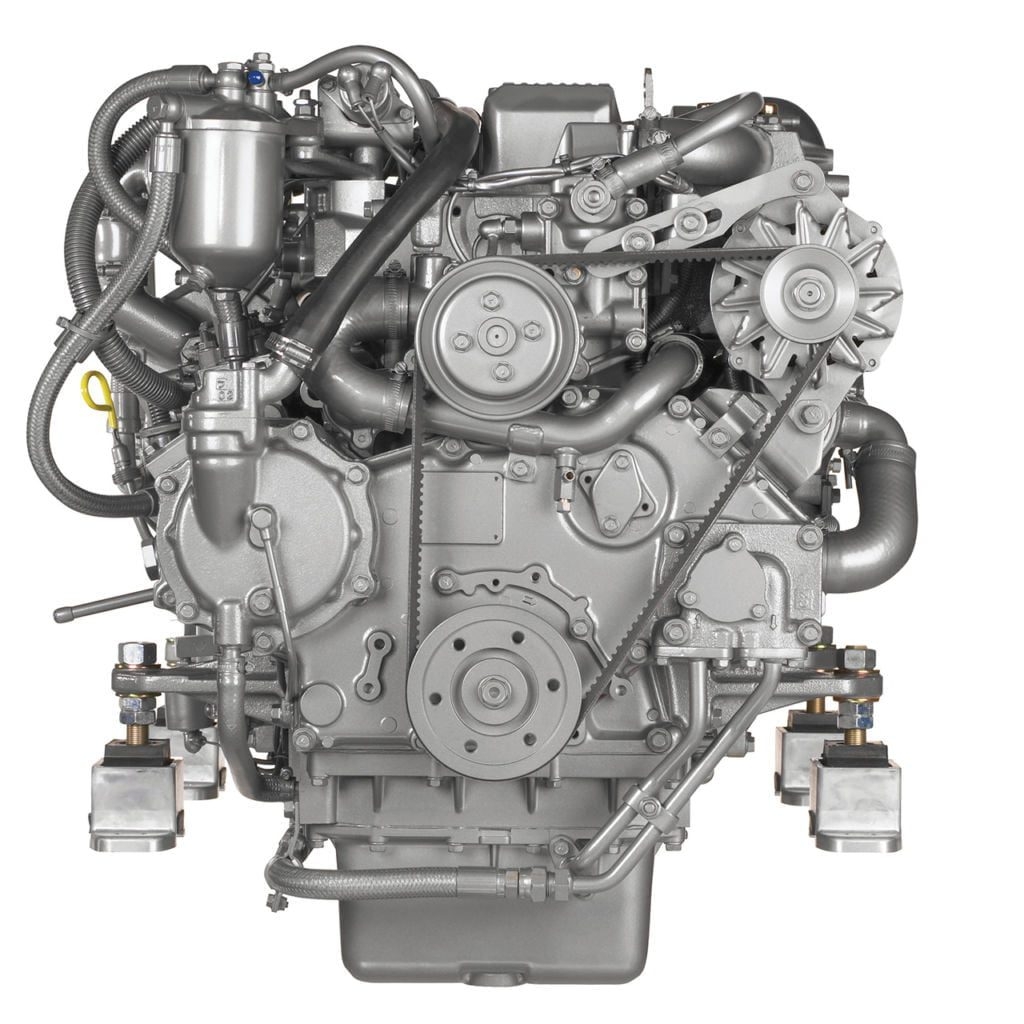

Yanmar 4LHA-STP (Z)
Contact Us
Manufacturer:
Yanmar
Specifications
Rated output177 kW / 240 mhp
Rated Speed3300 rpm
Displacement3.455 L / 211 cu. in
No. of cylinders4 cylinders
Cylinder Bore x Stroke100 mm x 110 mm / 3.94 in x 4.33 in
Combustion systemDirect Injection, In-line Pump
AspirationTurbocharged & Intercooled
Alternator12V - 80A
Dry weight without gear365 kg / 805 lbs
Dimensions1131 mm x 719 mm x 811 mm
ControlsMechanical
CertificationsRCD 1 IMO Tier 2 BSO II EMC SOLAS
-
