Performance Features

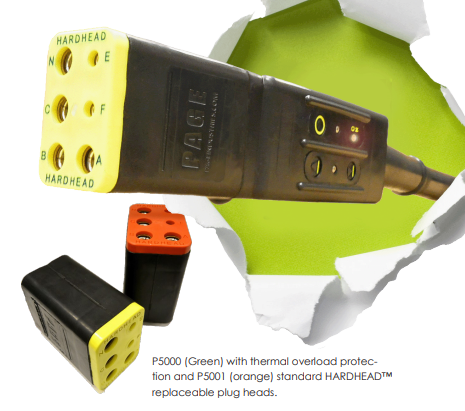

• Rugged HARDHEAD™ replaceable single
piece plug head, built to withstand the harsh
ramp environment.
• Built-in thermal protection device to
detect and disconnect output power in an
overtemp situation.
• Built-in Lost Neutral Detection will
disconnect output power should the cables
neutral conductor break.
• Modular design with replaceable
sealed modular control switches
for quick changes on the ramp.
• Molded strain relief provides added
strength for longer service life.
• Connector mates with MS90362 Receptacle
• Connector meets performance
requirements of MS25486 Plug
Specifications |
|
|
Power Conductors |
6 each AWG #4 |
|
Neutral Conductor |
1 each AWG #1 |
|
Control Conductors |
4 x 3 AWG #18 |
|
Control Conductors |
2 x TP AWG #18 |
|
Voltage Rating |
600 VAC |
|
Current Rating |
260 Amperes |
|
Temperature Range |
-55C to 90C |
|
Diameter |
1.65 inches |
|
Bending Radius |
10 inches |
|
Voltage Unbalance |
.02 Volts* |
|
Voltage Drop |
2.1 Volts* |
|
Weight Per Foot |
2.10 lbs. |
|
Jacket Material |
Reinforced Neoprene |
